Made during quarantine, while first learning coding and API integrations. The dinosaur talks in English, and its voice is homemade: open TTS models with altered voice properties until the result sounded like a dinosaur.
01 making the voice.
open ttsenglish speech
voice
pitch ↓ · buffer ↑deeper, slower
mix
+ animal soundslayered
out
dinosaur

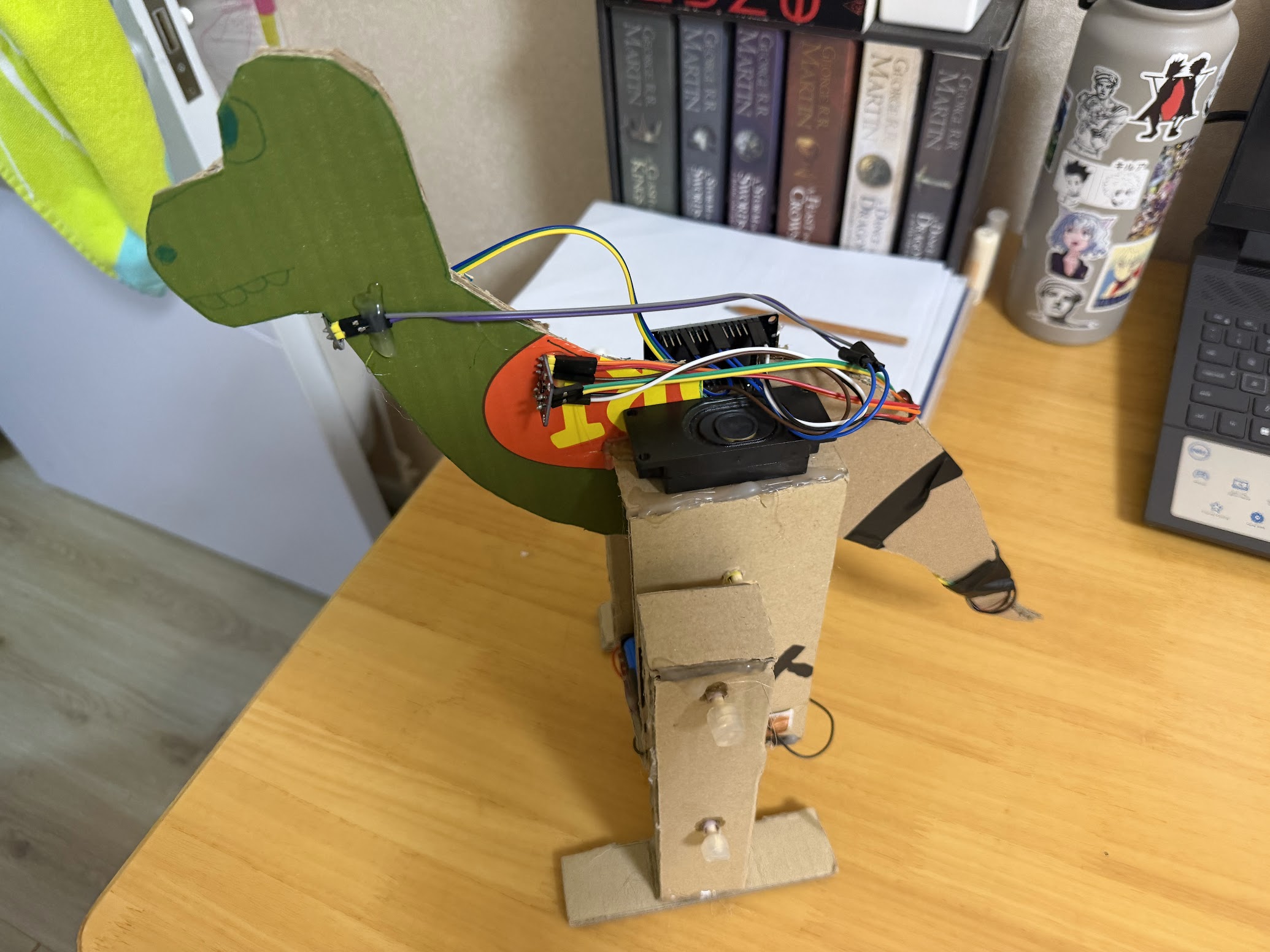

Lowered the pitch, increased the buffer and layered animal sounds on top to make the dinosaur voice effect.
the talking dinosaur, 2022.
2023–2024 · physics, math & informatics IPhO team
olympiads.
Qualified for Mongolia's IPhO team in grade 10, the youngest qualifier from Mongolia, as one of the country's 5 best physics students.
01 the path.
national olympiadmultiple 1st places
qualified
ipho teamtop 5 · grade 10
switched
hardware& hackathons
Multiple first places at Mongolia's National Physics & Engineering Olympiad came first, with math and informatics olympiads on the side. Then a switch: away from olympiads and into building hardware and hackathons.
dec 2025 · national science fair 1st place
quantum transmitter.
A device that transmits data through a laser. To demonstrate it, I sent music through light.
01 how it works.
2× esp32notes → pulses
signal
laser
light
arduinopulses → analog
aux
speaker
The transmitter is a laser driven by dual ESP32s that break music down into notes: we programmed every musical note as a different pulse with a different interval. The receiver is an Arduino that decodes those pulses back into an analog signal, which goes through an AUX cable into a speaker.
02 the demo.
music, sent through a laser beam.
03 at the fair.

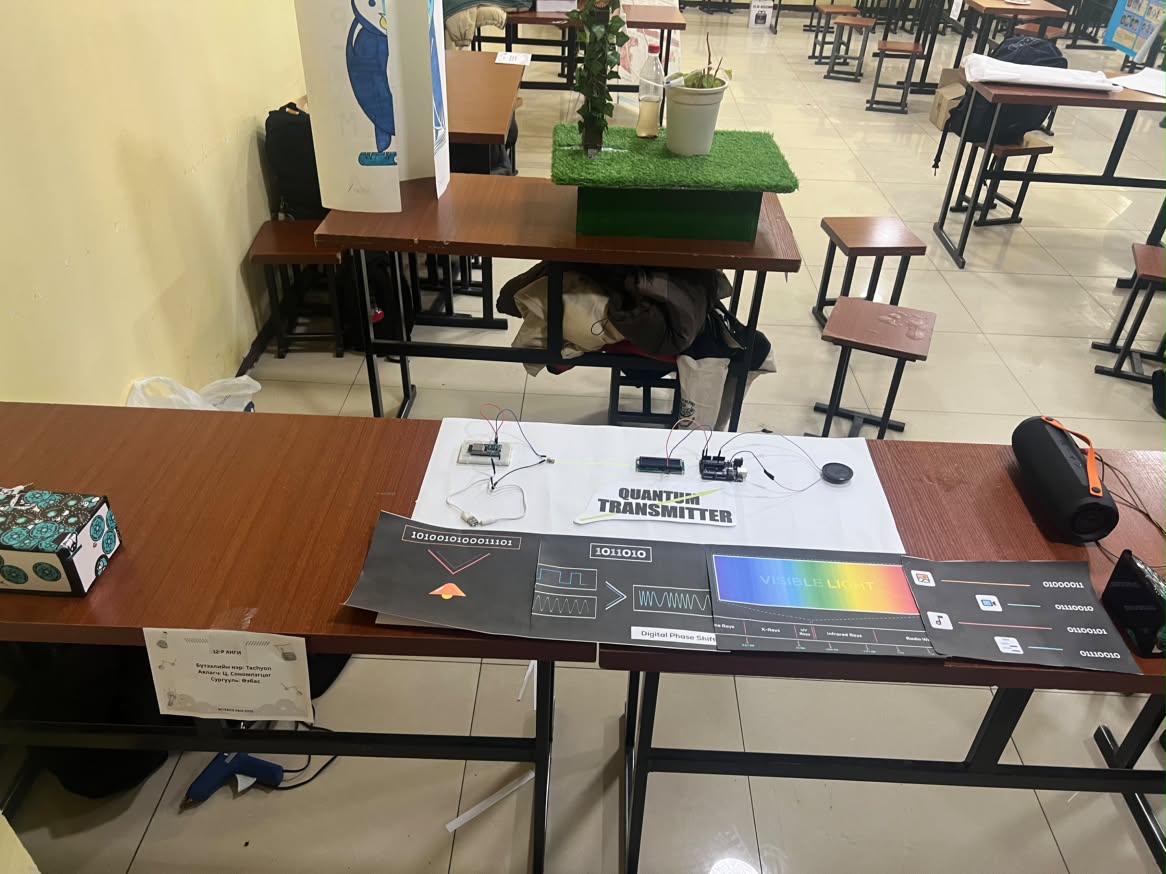

the transmitter setup.national science fair 2025.our table in the hall.
04 what came next.
We won first place at the National Science Fair as beginners. I went on to publish a paper at ICYS and was a finalist in the international research competition, with research on machine learning via light.
apr 2026 · scicon 2026 science fair
roylee & tugu.
RoyLee and Tugu are two sides of the same coin: they operate as one, but they're different. Built for SciCon 2026. RoyLee is a device that holds a conversation and can spur discussion with people. It runs on a custom-trained Mongolian LLM, built when there were no natural Mongolian language models. Tugu is RoyLee's extension, the physical form of its agentic features: a device we built from scratch that takes commands from RoyLee and carries them out.
01 the model.
RoyLee started from a small model in the 1B–8B parameter range (Llama 3 8B, Qwen, Phi-3). That size balances real language understanding with fast iteration on a single 24–80 GB GPU. Fine-tuned with QLoRA.
how it was trained
4-bit base. Loaded the base model in 4-bit NormalFloat (NF4) with bitsandbytes. This cut training memory drastically, while the active adapters' forward and backward passes stayed in 16-bit precision.
Dataset. Curated 500–2,000 highly refined instruction–response pairs, covering standard inputs, complex edge cases, and cases where the model has to refuse to answer.
Formatting. Applied a strict ChatML template, so control tokens like <|im_start|> and <|im_end|> are identical across the whole corpus and the model doesn't learn confusion.
Sequence length. Truncated sequences to a fixed context window matched to the task. Unnecessarily long sequences scale memory quadratically and cause out-of-memory crashes.
Training loop. Ran the fine-tune with SFTTrainer from Hugging Face trl, using gradient accumulation to simulate batch sizes the GPU couldn't hold natively.
Adapter merging. Fused the trained LoRA weights back into the base model, removing the latency of separate adapter matrices at inference.
Benchmarking. Evaluated the final checkpoint against a prompt-only baseline on a held-out test set: schema adherence (valid JSON), hallucination rate and domain accuracy.
02 speaking mongolian.
Then came a Mongolian LLM that talks in Mongolian naturally: trained on smaller models first, then data-optimised.
how it learned mongolian
Groundwork. Open-source work like Dorjzodovsuren's Mongolian-Llama3-v0.1 and bayartsogt's speech and language models laid vital groundwork. A fluent small model still needed the tokenizer fixed first.
The tokenizer bottleneck. Base models like Llama 3 or Phi-3 have English-centric tokenizers, so a single Mongolian word splits into 5–6 subword tokens. That bloats the context window and kills inference speed.
New vocabulary. Trained a custom Byte-Pair Encoding tokenizer on a clean Cyrillic corpus (CC100-Mongolian) and injected the top k ≈ 15,000 Mongolian tokens. Resized the embedding matrix from E ∈ ℝV×d to E′ ∈ ℝ(V+k)×d, then initialised each new token as the average of its subwords to keep what the base model already knew.
Continued pre-training. Kept training on Mongolian text (Wikipedia, legal corpora, news) with a next-token prediction objective, since instruction tuning alone can't teach a new language. Unfroze the resized embeddings and the transformer blocks and applied high-rank LoRA (r = 128) on every attention and feed-forward layer.
No forgetting. Mixed 5–10% English data into pre-training, so the model kept its logic, coding and reasoning.
Instruction tuning. Built a dataset of 20,000+ instruction–response pairs in fluent Mongolian. Started from translated datasets like Alpaca, then checked the pairs by hand to remove stiff, machine-translated syntax.
DPO. Trained on preference pairs with Direct Preference Optimization, so the model favours the native-sounding "chosen" answer over the translated-feeling "rejected" one.
Quantisation. Merged the LoRA adapters back into the base weights and quantised to 4-bit (GGUF / AWQ) so the model stays small enough for local servers and multi-agent setups.
Evaluation. Built a custom test suite (Cyrillic grammar, Mongolian cultural knowledge, contextual comprehension), since English benchmarks translate poorly.
03 the device.
For the demo, we set the model up on a server. A Raspberry Pi is the part you talk to: we added a touchscreen LCD, a microphone for your voice and a speaker module for RoyLee's. The Pi stores the inputs and responses. For speech we used Chimege, an open-source Mongolian STT and TTS that's still in development. Because Chimege is open source, its parameters and behaviour could be adapted to work with the model.
micraspberry pi
audio
sttchimege
text
royleellm
text
ttschimege
audio
speaker

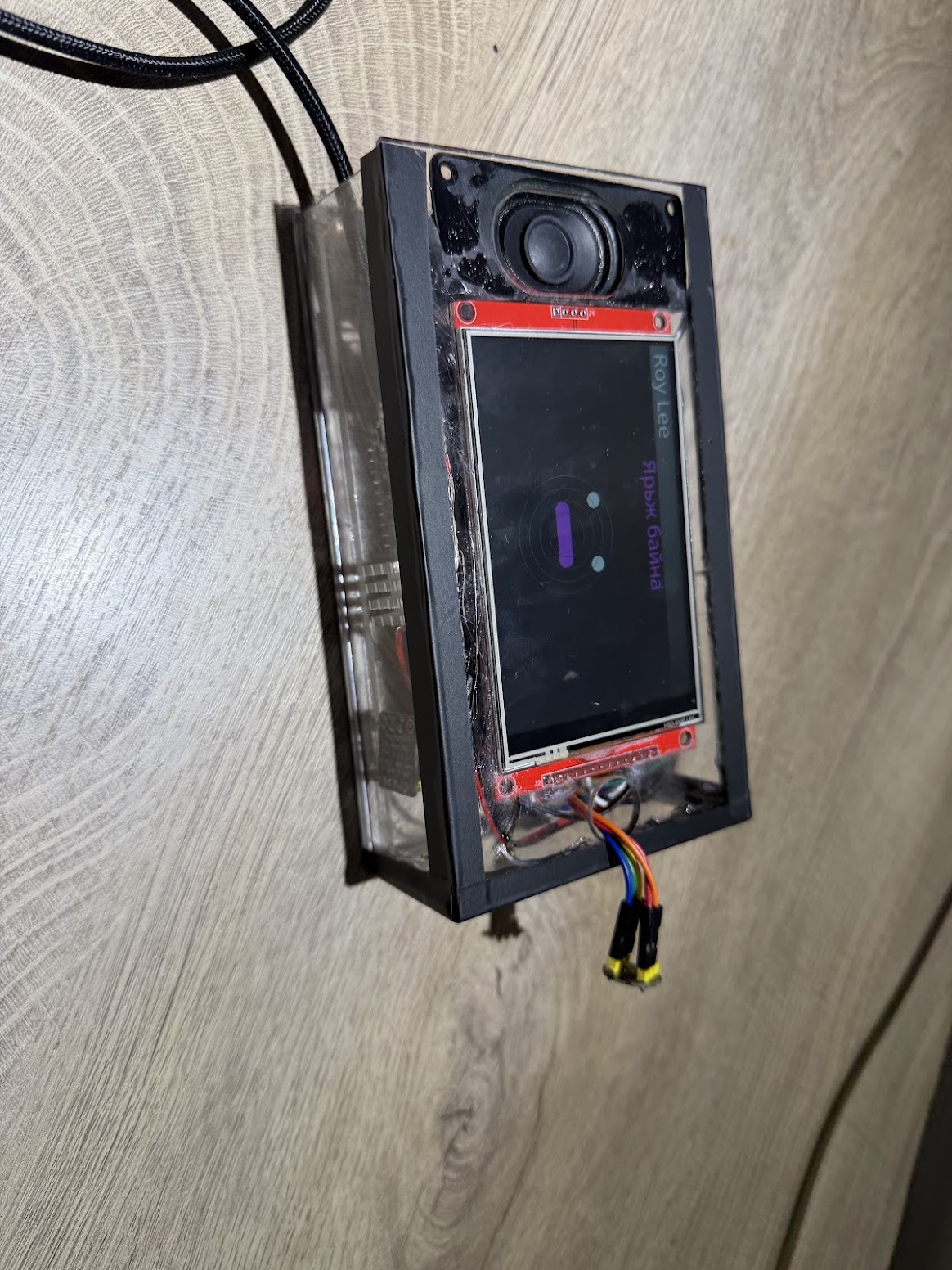

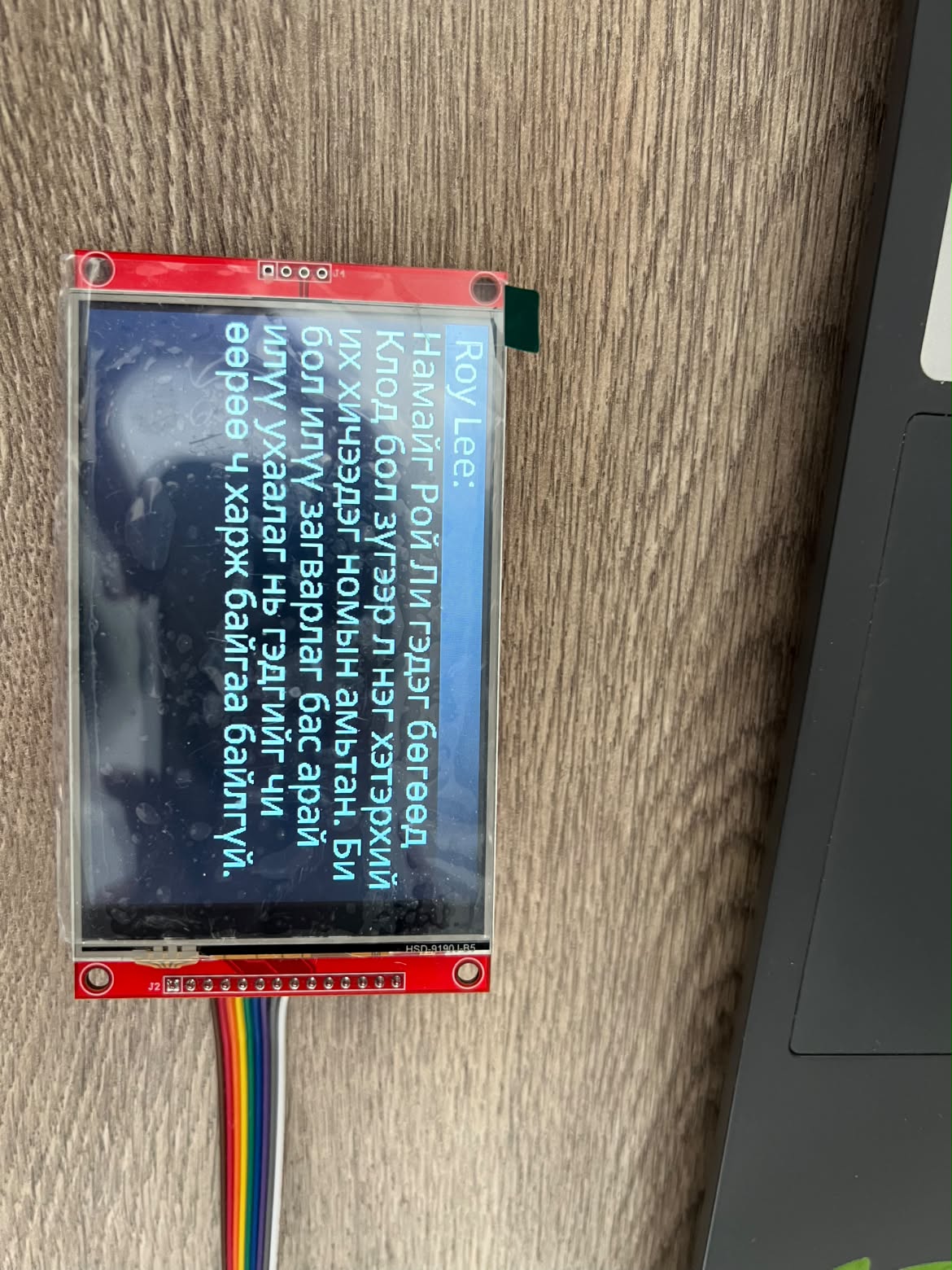

roylee.the finished product.roylee answering in mongolian.
04 the voice pipeline.
Talking to a model only feels natural if it answers quickly, so the pipeline is built to hide the wait.
how the pipeline works
speech → model
Voice activity detection. Ran VAD on the hardware, so only real speech frames are sent to the STT server over WebSockets. That means less latency and less bandwidth.
Normalisation. Cleaned up the transcript (digits, acronyms, Cyrillic spacing) before it reaches the model, since raw Mongolian STT output often lacks punctuation or has unformatted numbers.
Prompt formatting. Wrapped the transcript in the same ChatML tokens the model was trained on, with hidden system instructions that keep answers short enough to speak.
model → speech
Sentence chunking. Buffered the token stream until a complete Mongolian sentence or clause, sending each chunk straight to TTS instead of waiting for the full answer.
Phonetic expansion. Wrote a normaliser that expands abbreviations and maths symbols into spoken Mongolian, so the TTS reads them with the right prosody.
Overlap. While chunk N is being spoken, chunk N+1 is already being generated. Downsampled the audio to 16 kHz mono WAV to avoid buffer underruns on the speaker and display.
architecture
Decoupled services. Connected STT, the LLM server and TTS through asynchronous message brokers (MQTT / gRPC) instead of one monolithic script, so they run in parallel. The model's thinking time hides behind the audio of the first sentence.
05 tugu: roylee's hands.
RoyLee talks; Tugu acts. We built Tugu from scratch on a Raspberry Pi, strapped on LEDs, motors and other systems, and trained it to receive commands from RoyLee and execute them. You can tell RoyLee to turn the servo to 90°, then to 180° after 10 minutes, then back to 90° after 5 more. Or ask it to turn on a light sequence for a Christmas party.
royleellm
json
mqttmosquitto
command
tuguraspberry pi
gpio
leds · motors
exampleyou → "RoyLee, turn on a sequence for the Christmas party."
roylee → manifest_hardware({"device": "led_array", "pattern": "christmas", "duration_ms": 60000})
tugu → {"status": "done"} // telemetry back to roylee
how tugu works
tool calling
Structured output. Tugu can't act on conversational text, so RoyLee answers in deterministic function calls. Defined explicit tool schemas in the system prompt, like a manifest_hardware tool that takes {"device": "led_array", "pattern": "pulse", "duration_ms": 5000} or {"device": "dc_motor", "direction": "forward", "pwm_duty": 85}.
No parsing errors. Used a model fine-tuned for robust tool calling, plus grammar constraints that guarantee every output matches the JSON schema before it's sent.
messaging
MQTT pub/sub. Blocking HTTP requests don't work for physical agent loops, so deployed a Mosquitto MQTT broker. RoyLee publishes its JSON tool calls to a command topic (agent/pi/command).
No waiting. RoyLee fires the command and goes straight to its next reasoning step, instead of pausing while a 10-second LED sequence plays out.
the hardware daemon
Always listening. Tugu runs a Python daemon that subscribes to the command topic, using paho-mqtt for the network and gpiozero for the hardware.
Non-blocking actuation. Ran LED patterns (breathing effects, chase sequences) and motor ramping as asyncio tasks and worker threads, so Tugu stays responsive to an emergency STOP even while a motor is running.
Power isolation. Pi GPIO pins output 3.3 V at very little current, so routed the PWM signals through an external motor driver (an L298N or an I²C stepper controller). It turns RoyLee's speed values into the right voltage for the motors without frying the board.
closing the loop
Telemetry. When an action finishes, or a sensor like a limit switch or encoder triggers, Tugu publishes a JSON update to agent/pi/telemetry.
Context injection. RoyLee's orchestrator subscribes to that topic and injects each update into the model's context as a tool observation, for example {"role": "tool", "content": "Motor reached position. Current draw spike detected."}. RoyLee then decides its next action from what actually happened. That feedback is what makes it an agent, not a remote control.
06 the build.

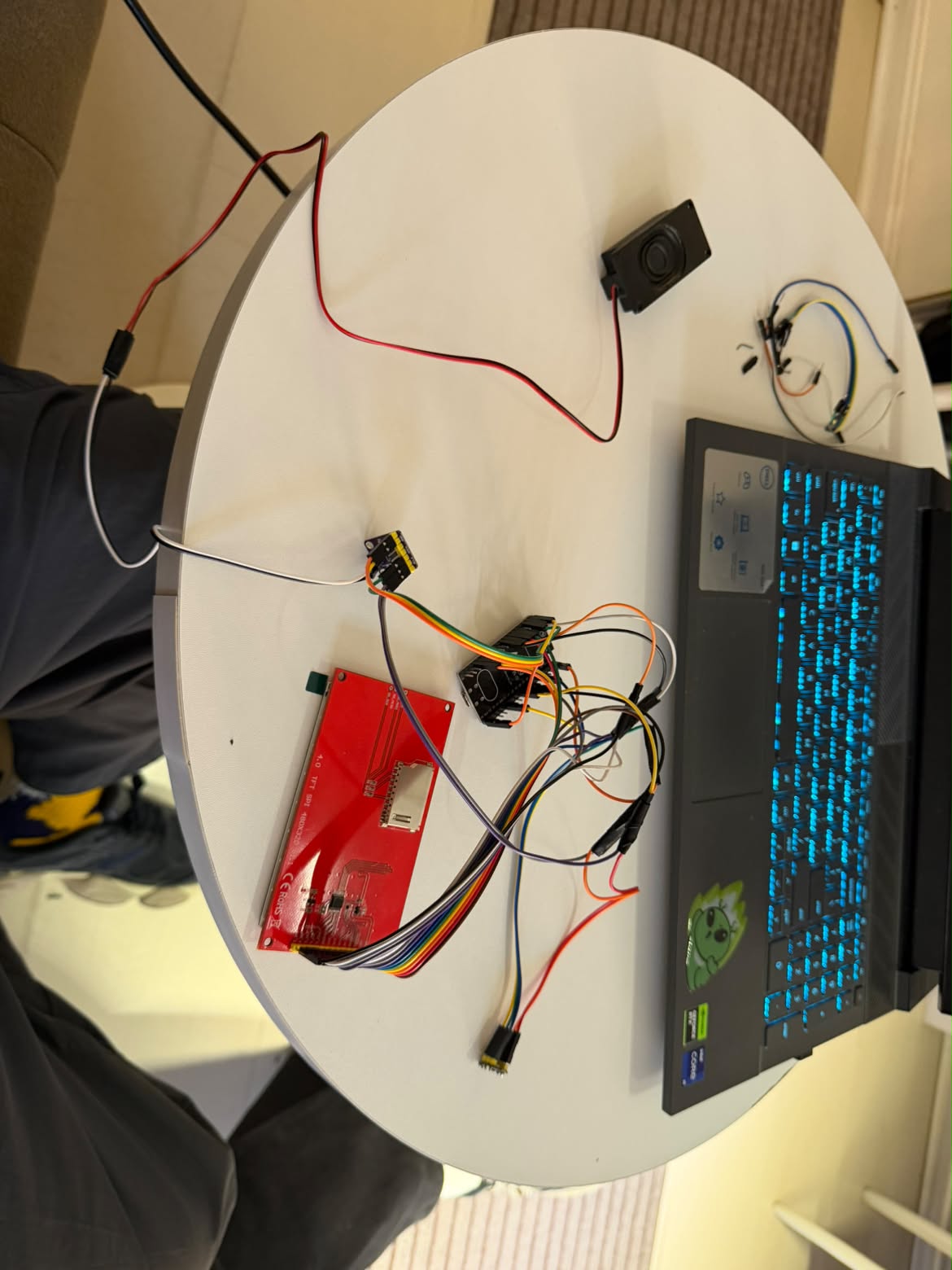

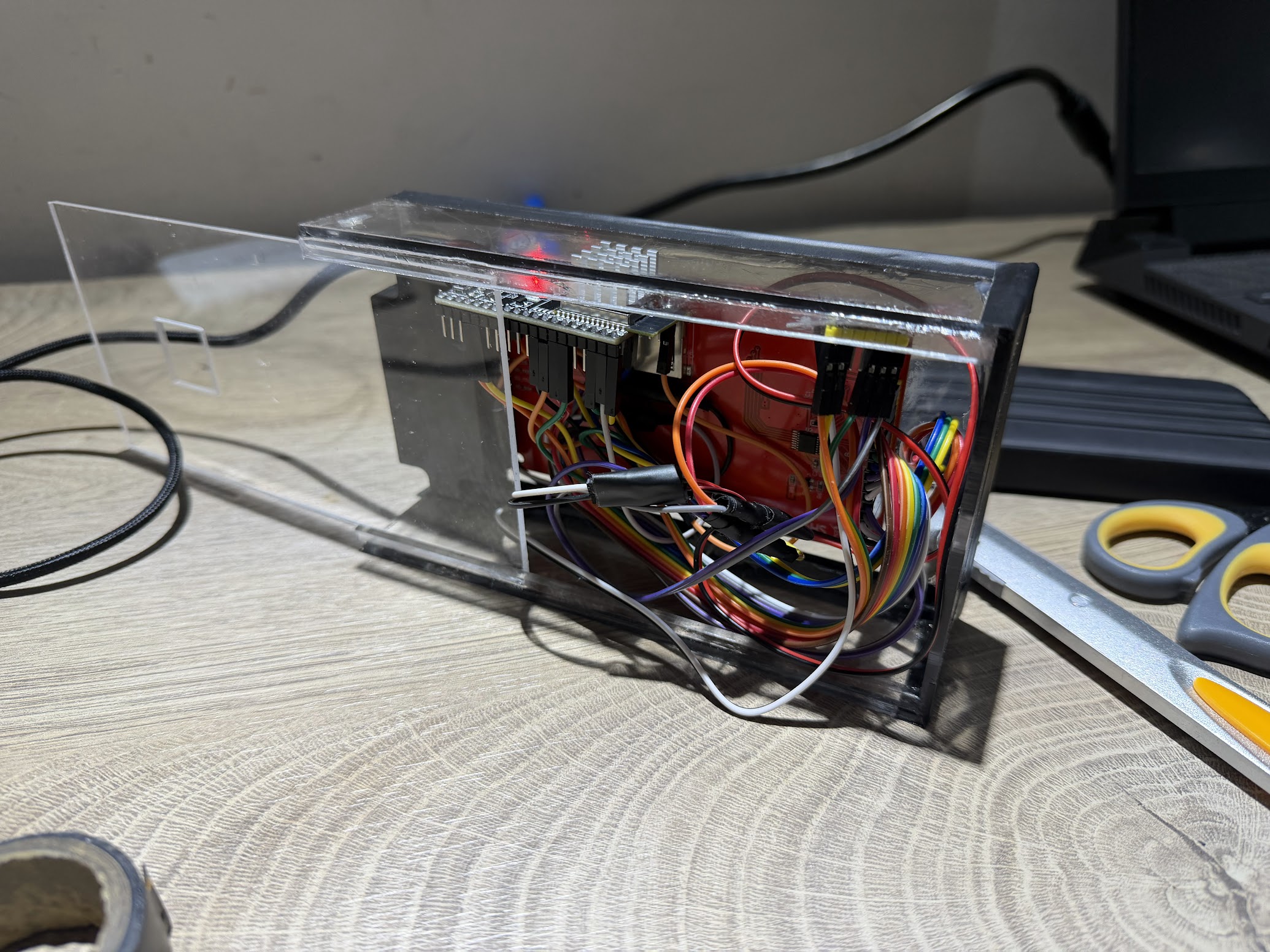

wiring up the first prototype.testing the hardware.soldering.writing the code.nearing the end: everything inside the case.
07 competition day.
vibing before the competition.the roylee stand.
may 2026 · startup mongolia 2026 1st placeacquired
monbus.
We made an AI transportation app for Ulaanbaatar that estimates travel times from weekly traffic-jam data. We built it for elders and anyone in Mongolia who doesn't speak English: you talk to an AI in Mongolian, and it plots your bus route and how long the trip will take in traffic.
01 the app.
youask in mongolian
where to?
ai+ weekly traffic data
plot
bus route+ travel time
Bus. Tell the AI where you're going and it plots the bus routes in Mongolian, with how long the trip will take depending on the traffic.
Scooters. We worked with Tapatrip to bring the scooters around Ulaanbaatar into one unified location system. We developed the scooter location system specifically for MonBus, so people can see where the free scooters are, plus their battery level and condition. It made things much easier for riders and for Tapatrip.

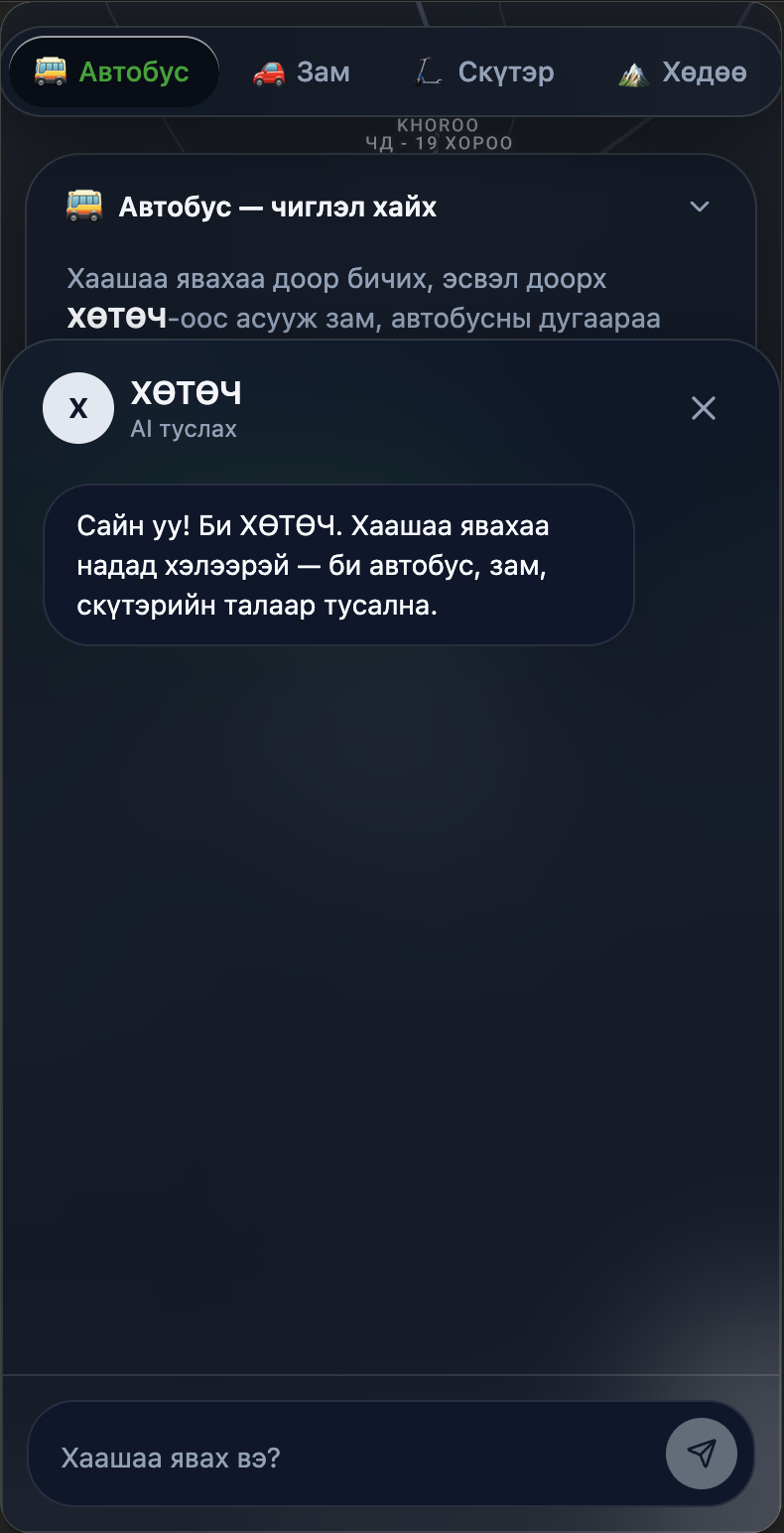

finding a bus route.ХӨТӨЧ, the ai assistant.
02 first place.
MonBus won first place at Startup Mongolia 2026 and $6,000 in prize money. We put it into API costs and scaled MonBus to many more people.
on stage with the first-place cheque.startup mongolia 2026.
03 acquired.
In August, MonBus was acquired by UBCard, a government-led company, for $30,000.
Interned at 1X as a Simulation Engineer (Physics Modeling) while building VISI. The work was on NEO, 1X's flagship humanoid, and specifically its hand data pipeline. The aim of the role: a simulation faithful enough that what a policy learns there carries over to the real robot.
01 the sim-to-real loop.
real neofleet data
sysid
physics modelcontact · sensing
run
simulationrandomized
train
policytrain · eval
deploy
real neomeasure the gap
Fidelity work is driven by evidence, not by a simulation that looks right: system identification on real hardware feeds the physics model, and real-robot comparisons measure what is still off.
02 the hand data pipeline.
Work on NEO's hand data pipeline covered seven areas of physics modeling.
what the work covered
Physical accuracy. Improving contact dynamics, articulated-body models and actuator and transmission fidelity, driven by system-identification data from real hardware and kept current as the hardware changes.
Compliant and deformable bodies. Modeling soft contact and structural compliance where rigid-body assumptions break down, so grasping and contact-rich behavior transfers instead of only working in simulation.
Sensing realism. Modeling the sensing path as it actually behaves (noise, bias, dropout, latency and sample timing), so a policy sees in simulation what it will see on the robot.
Measuring the gap. Building benchmarks and real-robot comparisons that quantify sim-to-real error, so fidelity work is driven by evidence rather than intuition.
Randomize or model. Deciding which discrepancies to model faithfully and which to randomize over, with ranges grounded in the spread measured across the real fleet.
Determinism and reproducibility. Making runs reproducible given the same inputs, so a regression is a real regression and any failure can be replayed and debugged.
Throughput and environments. Optimizing physics and rendering, plus the environments and synthetic data pipelines that feed policy training and evaluation.
skills
Physics simulation (contact dynamics, articulated bodies) · sim-to-real judgment · validation against real-robot data · modeling unit-to-unit variation across the fleet · physics and rendering performance · tested, deterministic simulation infrastructure.
03 what came next.
Left 1X to build VISI full-time. VISI now works with 1X on NEO's new and upcoming hand models.
now · in stealth $750K raised$17.5M valuation
visi.
Building VISI full-time since leaving 1X, with $750K raised at a $17.5M valuation and ARR already in the high six figures. VISI is partnered with 1X on NEO's new and upcoming hand models, and has long-term partnerships with humanoid robotics companies including 1X, Unitree and Figure AI. Users are growing every week.
